Virtually Seamless Design
Blend in and stand out with a smooth, clean look and a virtually seamless design.
Heat Sensor
With the help of a heat sensor, cook without care as our ventilator automatically increases power if temperatures reach uncomfortable levels.
Bright LED Lighting
Dimmable lighting controls provide custom illumination for enhanced surface cooking visibility. Long-life LED light bulbs are energy efficient and consumer replaceable.
APPEARANCE AND DESIGN
- Backlit LED knobs extend and illuminate to control lighting level and fan speed, then fully retract when not in use
- Seamless design provides a refined finish to your kitchen
- Recommended for use with 30” wide ranges, rangetops, and cooktops, and 36”W. non-griddle ranges, rangetop, and cooktops. For larger equipment, use 18” high wall hood
- Optional recirculating kit accessory for ventless ducting sold separately
QUIET AND EFFICIENT VENTILATORS
- 460 CFM interior-power ventilator comes standard with product and quietly delivers powerful smoke and odor removal
- Multi-speed ventilator control knob allows precise adjustment to desired fan speed
- Maintenance-free ventilators never need to be cleaned with the commercial-type hood filters doing the dirty work
- Cook with peace of mind as the built-in heat sensor activates the ventilator to full power if cooking temperatures reach uncomfortable levels
BRIGHT LED LIGHTING
- Dimmable lighting controls provide custom illumination for enhanced surface cooking visibility
- Long-life LED light bulbs are energy efficient and easily replaceable
EASY MAINTENANCE AND CLEANUP
- Commercial-type baffle filters efficiently remove heat and grease vapors from the air
- Stainless steel dishwasher-safe filters are easily removed for quick cleaning
- Low-profile filter system reduces interior hood space, leaving less surface to clean
WARRANTY
- 2-year full-complete product
- 90-day full-cosmetic parts such as glass, painted items and decorative items
- 5-year limited-ventilator motors
Specifications
| Appearance | |
|---|---|
| Color | Stainless Steel, Damascus Grey, Slate Blue, Cast Black, Blush, Antique Bronze, November Sky, Spiced Cider, Eucalyptus, Splash, Martini, Ivy, Pure White, Golden Hour, Nantucket, Squall, Valentine, Onyx, Daffodil |
| Appliance Category | Hood |
| Brands | |
|---|---|
| Brand | Viking |
| Series | 5 Series |

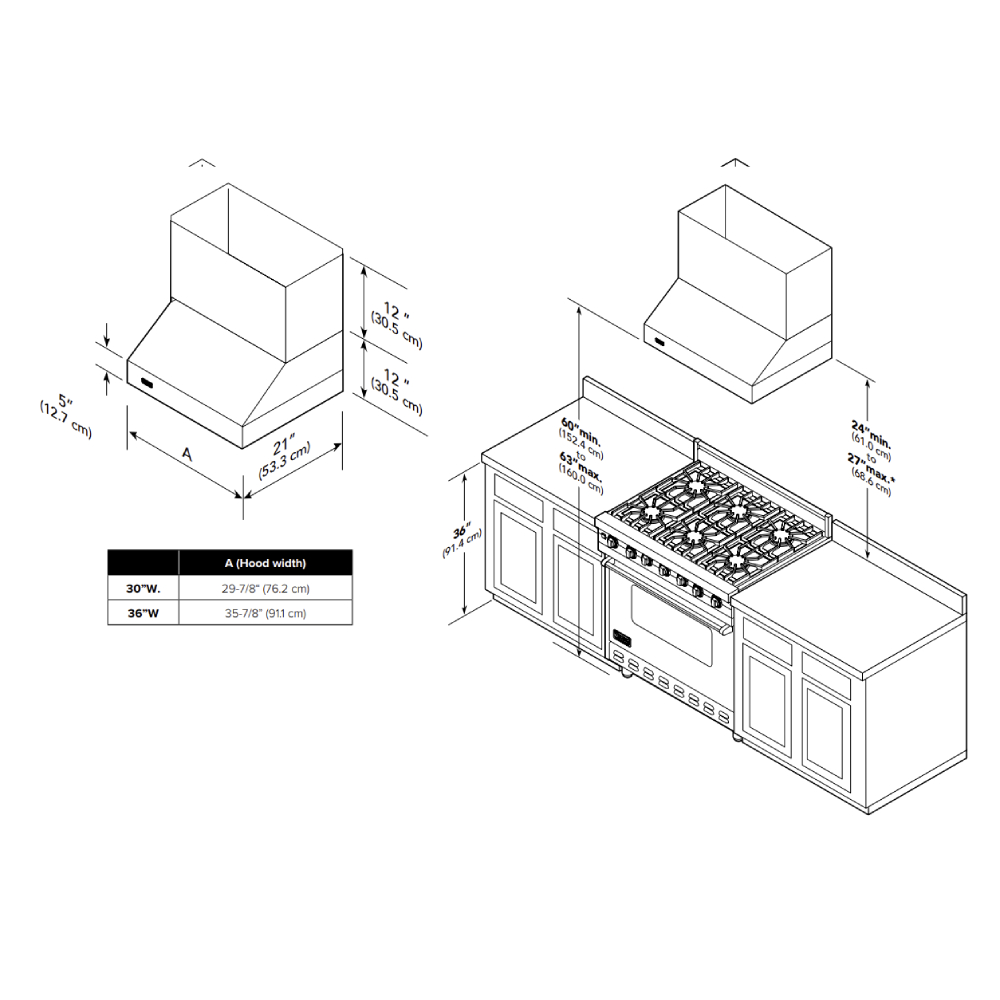

| Dimensions | |
|---|---|
| Exterior Width | 30" |
| Width | 29 7/8" |
| Depth | 21" |
| Height | 12" |
| Style | |
|---|---|
| Style | Canopy Style |
| Type | Wall Mount |
| Design Style | Pro Style |
| Technical Details | |
|---|---|
| Duct Location | Top |
| Voltage | 120 Volts |
| Amps | 4.9 |
| Duct Type | Round |
| Duct Diameter | 7" |
| Features | |
|---|---|
| CFM | 460 |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | LED |
| Filter Type | Baffle |
