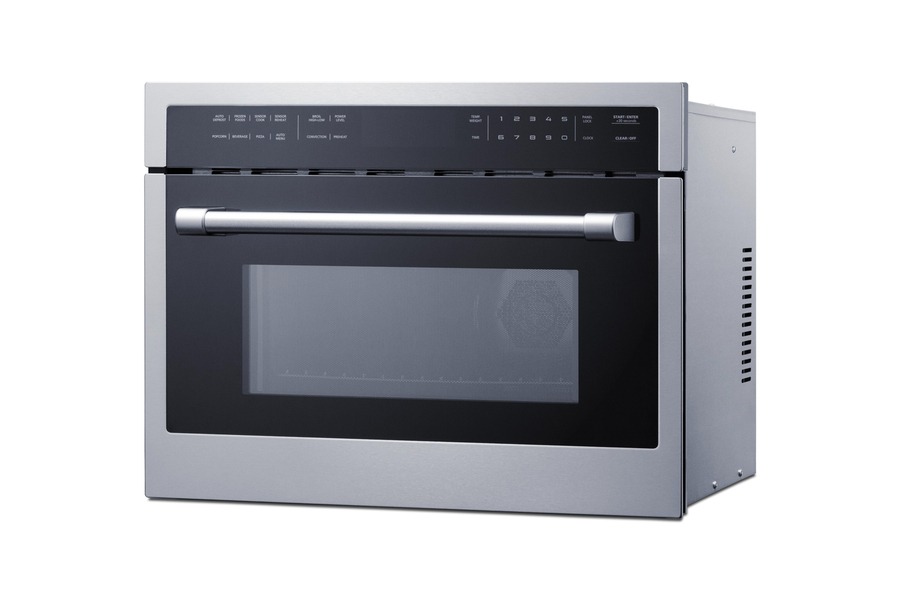

24" Wide 115V Speed Oven
Summit helps enhance smaller kitchen functionality with fully featured speed ovens.
Designed for built-in installation, the CMV115 meets all of your cooking needs in just 24" of width. This unit can be installed in 17 3/4" H x 22 5/16" W x 22" D wall cavities and under counter openings to maximize kitchen space. It includes a pre-installed cord with a 3-prong NEMA 5-20 plug for easy installation in 115V connections.
24" Wide 115V Speed Oven
Built-in 115V speed oven designed for installation under the counter or in wall openings

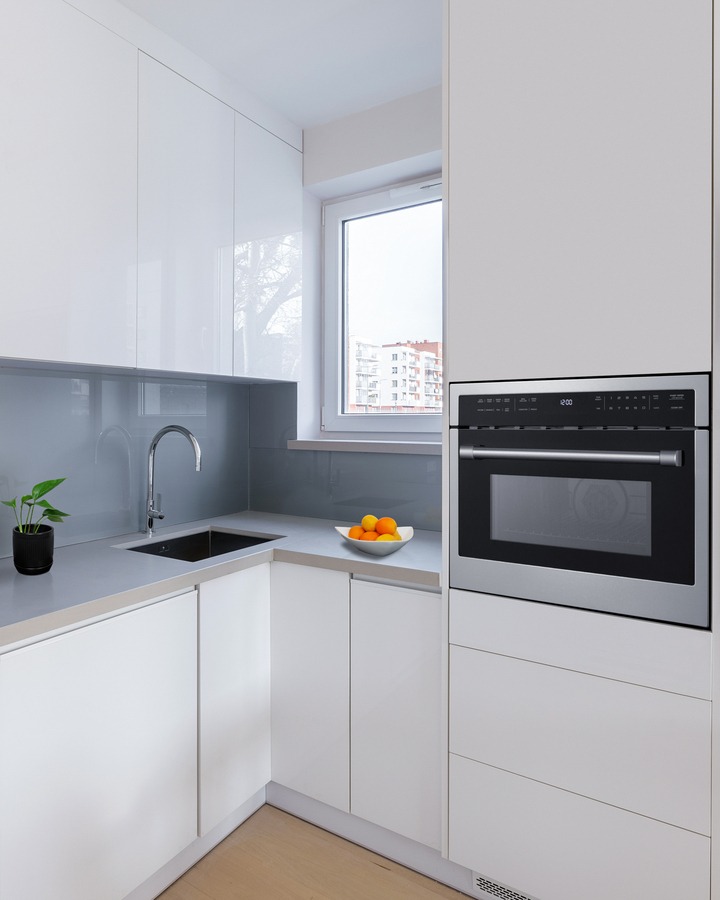

Designed for built-in installation
Sized to fit 17 3/4" H x 22 5/16" W x 22" D wall cavities and under counter openings
110-120V operation
Designed for installation in kitchens with a 115V/60Hz/20 amp connection

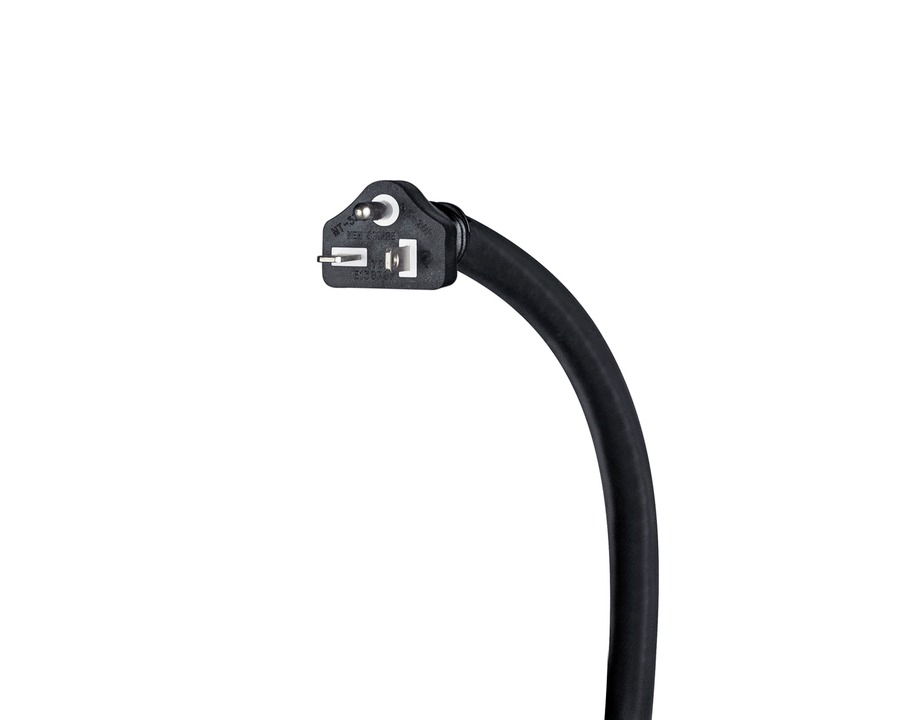

Power cord included
Ships with a pre-installed cord and standard NEMA 5-20 3-prong plug for easy installation
Large capacity
1.55 cu.ft. interior offers spacious cooking space for medium to large dishes
Stainless steel construction
Interior and exterior manifold and door trim are constructed from stainless steel for professional elegance and long-lasting durability
Professional handle
Robust handle in brushed stainless steel offers an attractive look that matches many popular styles of kitchen cabinetry
Oven window
Double pane glass door with a tint lets you monitor your cooking

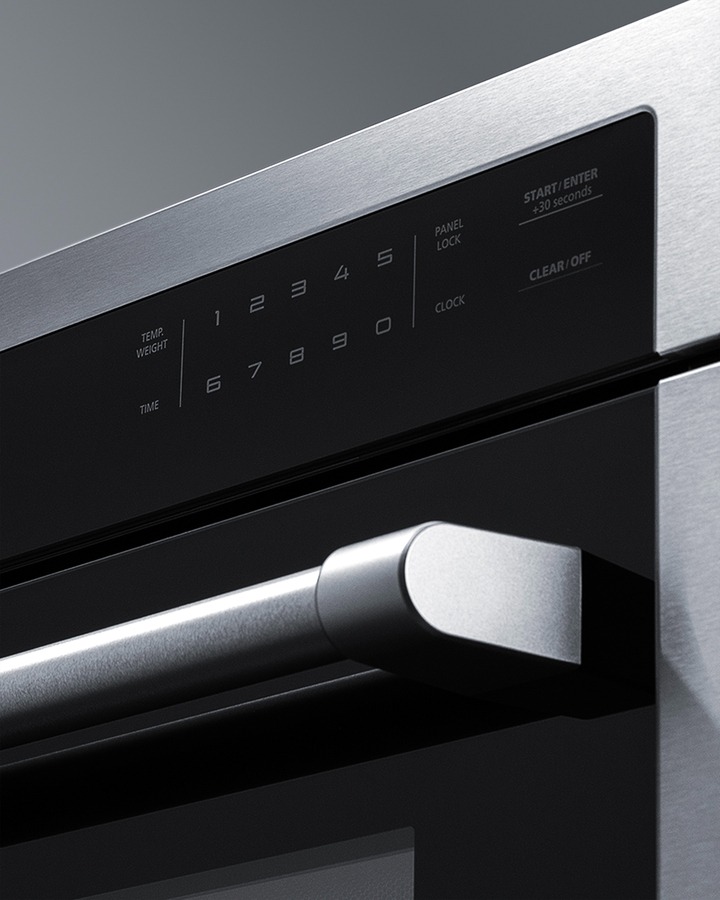

Digital touch controls
Intuitive touch controls for easy operation
Convection function
Convection fan improves air circulation and ensure fast, even heating throughout the entire oven interior
Microwave function
Can be used for standard microwave cooking with options that allow 220W, 400W, 600W, 800W, and 1000W heating
Defrost function
Defrost by weight or time for decreased cook time
Broiler function
High/low broil setting perfect for toasting food, baking cheese-covered dishes such as lasagna, grilling meat, or baking certain pies
Preheat function
Ensure more efficient cooking with the rapid preheat function that sends an audible alert when the temperature has been reached
Sensor cook function
Automatically sets the appropriate cooking time by sensing the moisture level of the food being cooked
+30 seconds function
One-touch setting lets you add 30 seconds of full power heating
Specialty 1-touch cooking options
Pre-programmed settings for pizza, beverages, popcorn, frozen dinners, and reheating
Multi-stage cooking
Allows you to set two power levels on a microwave setting for versatile heating as needed
Panel lock
Safety "Stop" button lets you lock the control panel to prevent children from accidentally activating the unit
Digital clock with timer
Centered display shows a digital readout of the time or timer countdown

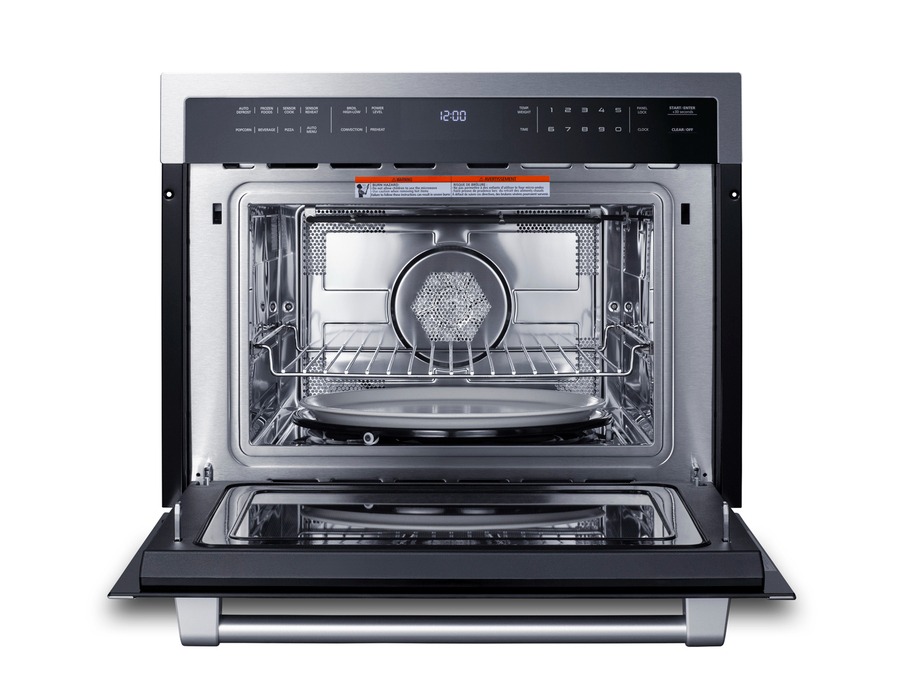

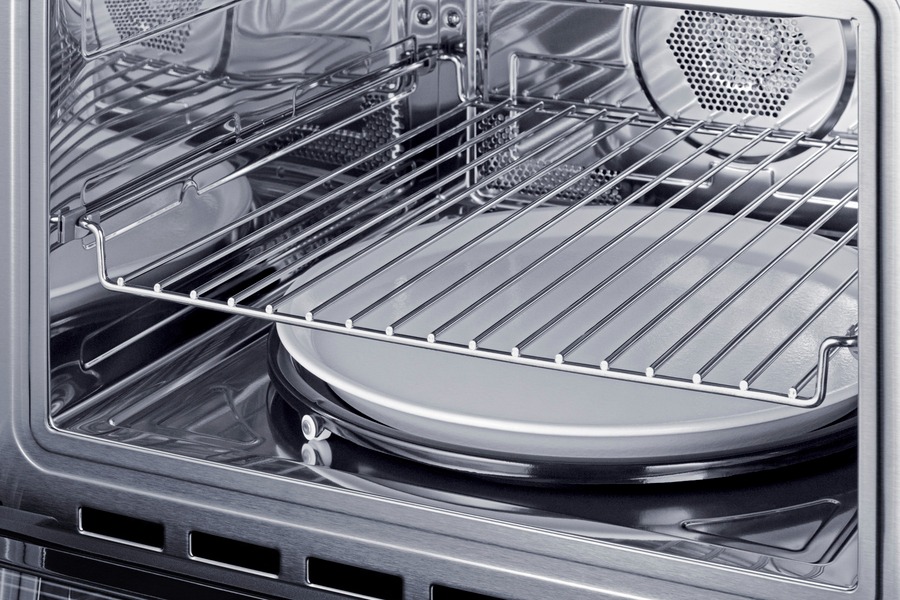

Metal turntable
Removable metal turntable for even heating when using the microwave function
Ceramic baking tray
Includes a removable round tray for easy baking
End of cycle buzzer
Oven will audibly beep when cooking function has finished
UL listed for the USA and Canada
Approved for residential installation in American or Canadian kitchens
FCC Approved
This unit complies with part 18 of the FCC rules
Specifications
| Certifications | |
|---|---|
| UL Listed | Yes |
| Appearance | |
|---|---|
| Color | Stainless Steel |
| Appliance Category | Wall Oven |
| Brands | |
|---|---|
| Brand | Summit |
| Dimensions | |
|---|---|
| Height | 17 3/4" |
| Exterior Width | 24" |
| Width | 23 1/2" |
| Depth | 24 1/4" |
| Cutout Width | 22 3/10" |
| Cutout Height | 17 3/4" |
| Cutout Depth | 22" |
| Style | |
|---|---|
| Style | Single |
| Type | Speed Oven |
| Dryer Features | |
|---|---|
| Fuel Type | Electric |
| Refrigerator Features | |
|---|---|
| Total Capacity (cu. ft.) | 1.55 |
| Oven | |
|---|---|
| Interior Width | 16 1/2" |
| Interior Height | 9 3/4" |
| Interior Depth | 16 1/2" |
| Warranty | |
|---|---|
| Warranty | 1 Year Parts and Labor |
| Technical Details | |
|---|---|
| Voltage | 115 Volts |
| Amps | 20 |
| Features | |
|---|---|
| Speed Oven | Yes |
| Sensor Cook | Yes |
| Convection | Yes |
| Others | |
|---|---|
| Color Family | Stainless Steel |
| Depth with Door at 90 Degrees | 35 3/4" |
