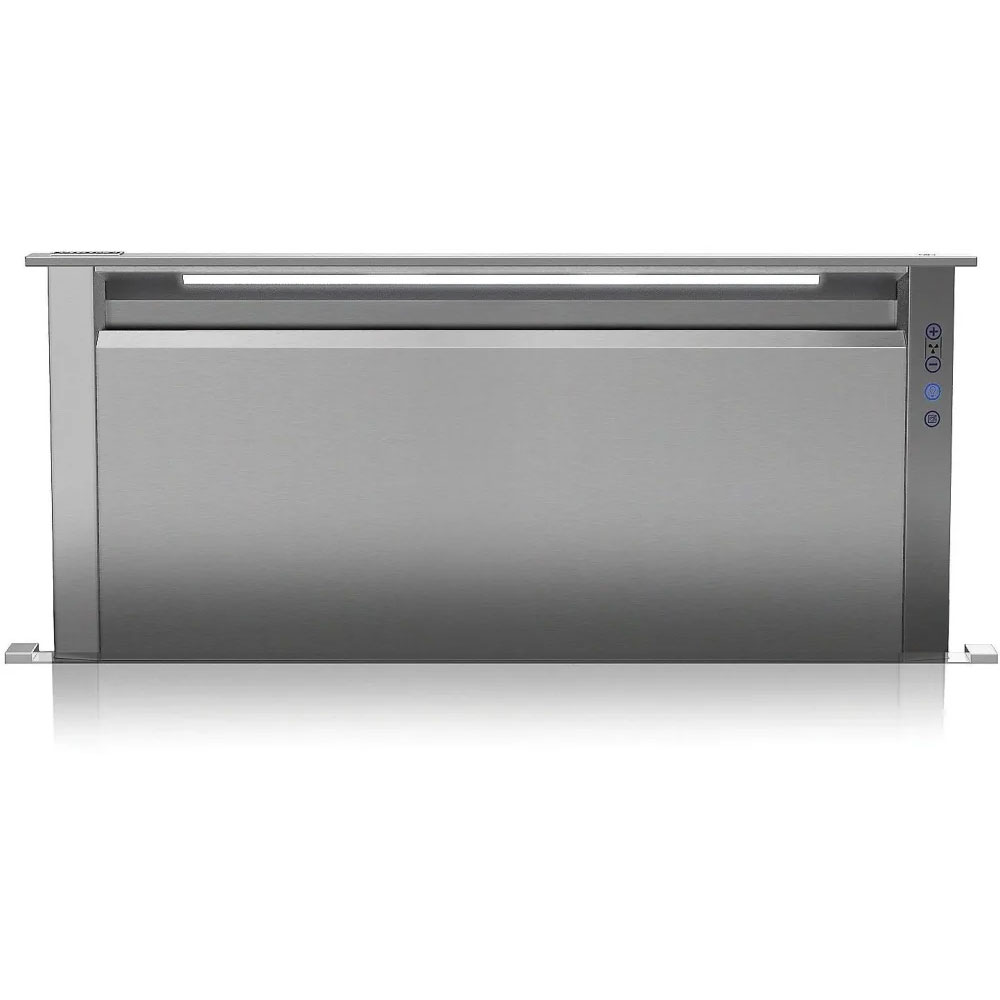

Viking VDD5480SS 48 inch 5 Series Built-In Rear Downdraft
The Viking 5 Series downdraft ventilation system designed to eliminate smoke and odors while maintaining a sleek appearance. An industry-leading 18-inch high chimney rise, makes it ideal for capturing smoke and odors from large pots and pans. The heat sensor automatically increases power if temperatures reach uncomfortable levels during cooking.
18" High Chimney Rise
Industry leading 18" high chimney rise is ideal for large pots and pans, capturing more smoke and odors than other downdrafts
Variable Fan Speeds
Four variable fan speeds ensure efficient ventilation for every cooking situation.
Heat Sensor
Automatically adjusts speed of blower to high when excessive heat is detected.
LED Lighting
Two level LED lighting illuminate the cooking surface.
Filter Clean Indicator
Take the guesswork out of when to clean the filter with the filter clean indicator light.
DESIGN AND APPEARANCE
- Coordinates with both Viking Professional and Viking cooktops and Viking Professional rangetops
- Compact design is installed directly behind a cooktop or rangetop for an unobtrusive appearance
- Available in 30”, 36”, 45” and 48” widths
- Thin profile provides additional space under the cabinet
PROFESSIONAL PERFORMANCE AND FEATURES
- Industry leading 18” high chimney rise is ideal for large pots and pans, capturing more smoke and odors than other downdrafts
- Brushed stainless steel cover with dishwasher-safe filters are easy to remove for cleaning
- Filter clean indicator takes the guesswork out of when to clean the filter
- Capacitive touch control on front and top
- Two level LED lighting (500 LUX) for bright surface illumination
- Four speed blower efficiently handles all types of cooking
- Heat sensor automatically adjusts speed of blower to high when excessive heat is detected
BLOWER OPTIONS
- VDVI600 - 600 CFM interior flex blower
- Unique ducting capability allows interior blower to be ducted left, right, down or as a remote mount
- VDVE900 - 900 CFM external blower
- VDVE1200 - 1200 CFM external blower
- Optional ARKD accessory recirculating kit provides an option when outside ducting is not possible
WARRANTY
- 1-year full covers complete unit
- 5-year limited covers downdraft blower
Specifications
| Brands | |
|---|---|
| Brand | Viking |
| Series | 5 |
| Appearance | |
|---|---|
| Color | Stainless Steel |
| Appliance Category | Hood |
| Dimensions | |
|---|---|
| Exterior Width | 48" |
| Width | 45 3/8" |
| Depth | 2 1/4" |
| Height | 29 3/8" |
| Vertical Rise | 18 1/2" |
| Style | |
|---|---|
| Type | Downdraft |
| Design Style | Pro Style |
| Technical Details | |
|---|---|
| Voltage | 120 |
| Amps | 15 |
| Features | |
|---|---|
| Number of Fan Speeds | 4 |
| Venting Type | Convertible |
