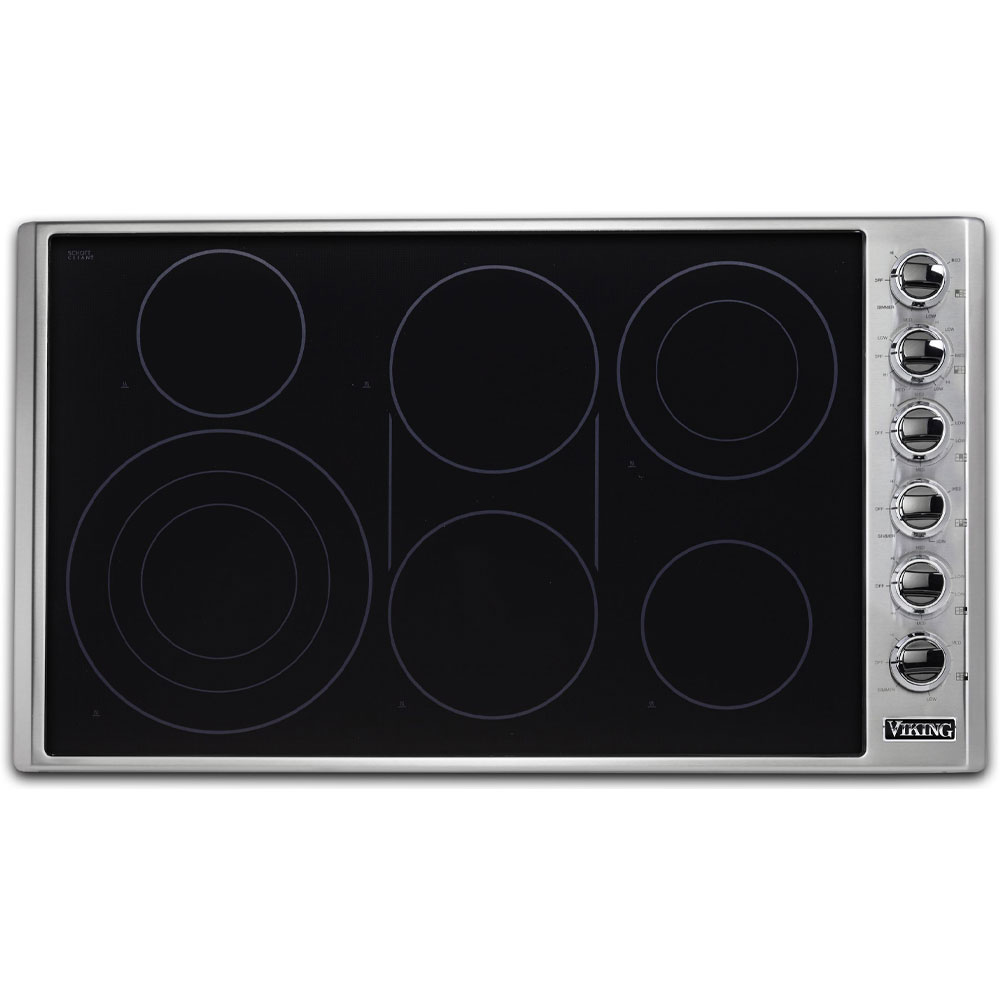

Viking VECU53616BSB 5 Series 36 inch Electric Radiant Cooktop with 6 Elements
The Viking 5 Series Electric Radiant Cooktop offers a blend of style, performance, and versatility. The cooktop features QuickCook Surface Elements which utilize new ribbon technology elements that reach full power in three seconds. The bridge element combines a front and rear element into one zone to accommodate oversized cookware.
QuickCook Surface Elements
QuickCook Surface Infared Elements with ribbon technology reach full power in three seconds and provide fast technology with nearly all cookware.
Versatile Cooking Space
Multiple cooking zones including a 12" 3,200 watt triple element provide space and power options for most cookware.
Bridge Element
Bridge element connects front and rear elements to create a continuous heated surface for oversized cookware or optional griddle accessory.
Glass Ceramic Surface
Durable, wear resistant glass ceramic surface and laser-etched graphics withstand the rigors of regular cleaning.
COMMERCIAL-TYPE COOKING POWER
- QuickCook Surface Infrared Elements with ribbon technology reach full power in three seconds and provide fast cooking with nearly all cookware
- Up to 10 cooking zones, including a 12” - 3,200 watt triple element, provide space and power options for most cookware
- Bridge element connects front and rear elements to create a continuous heated surface for oversized cookware or optional griddle accessory
- Infrared energy transfer provides fast cooking, regardless of type of cookware used cooking
ELECTRIC 36” WIDE COOKTOP
- Left front (triple element) - 12” 3,200-watt element
- Left rear - 6 1/2”, 1,200-watt element
- Center front - 8 1/2”, 1,800-watt element
- Bridge - 800-watt
- Center rear - 8 1/2”, 1,800-watt element
- Right front - 6 1/2”, 1,200-watt element
- Right rear (dual element) - 8 1/2”, 2,000-watt element
EASY MAINTENANCE AND CLEANUP
- Durable, wear-resistant glass ceramic surface and laser-etched graphics withstand the rigors of regular cleaning
- Removable knobs for quick, simple cleaning
SAFE-EASY OPERATION
- NEW BlackChrome Knobs
- Child proof, push-to-turn metal knobs for safe use
- Element lights indicate hot surfaces and active elements
WARRANTY
- 2-year full - complete product
- 90-day full - cosmetic parts such as glass, painted items and decorative items
- 5-year limited - electric element components
Specifications
| Brands | |
|---|---|
| Brand | Viking |
| Series | 5 |
| Appearance | |
|---|---|
| Color | Stainless Steel |
| Appliance Category | Cooktop |
| Dimensions | |
|---|---|
| Exterior Width | 36" |
| Width | 36 3/4" |
| Depth | 21" |
| Height | 6 1/8" |
| Cutout Width | 34 7/8" |
| Cutout Depth | 19 1/4" |
| Fuel Type | |
|---|---|
| Fuel Type | Electric |
| Style | |
|---|---|
| Type | Cooktop |
| Style | Smoothtop |
| Control Location | Right Side |
| Design Style | Pro Style |
| Cooking Surface | |
|---|---|
| Number of Burners/Elements | 6 |
| Burner/Element Type | Radiant Element |
| Burner/Element Output N1 | 3200 Watts |
| Burner/Element Output N2 | 1200 Watts |
| Burner/Element Output N3 | 1800 Watts |
| Burner/Element Output N4 | 1800 Watts |
| Burner/Element Output N5 | 1200 Watts |
| Burner/Element Output N6 | 2000 Watts |
| Highest Element Output | 3200 Watts |
| Hot Surface Indicator Light | Yes |
| Technical Details | |
|---|---|
| Voltage | 240 |
| Amps | 45 |
| Features | |
|---|---|
| Control Type | Knobs |
