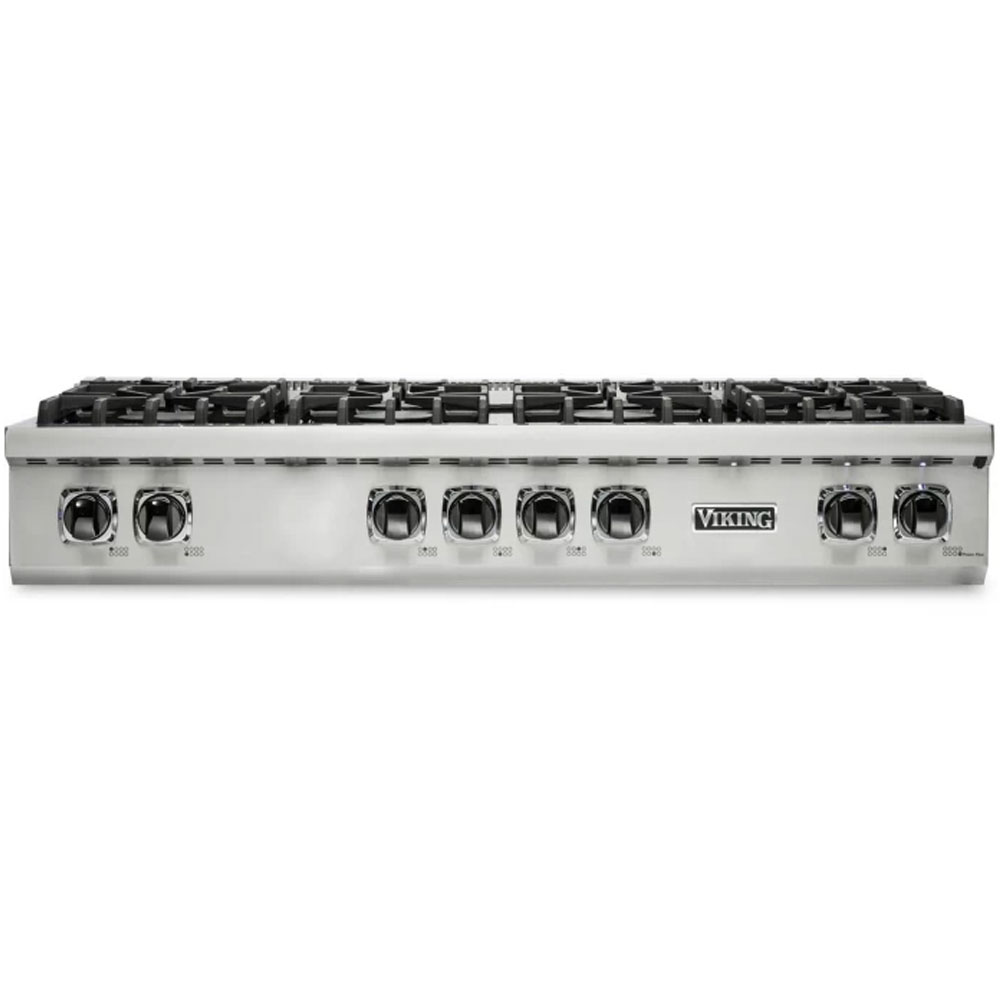

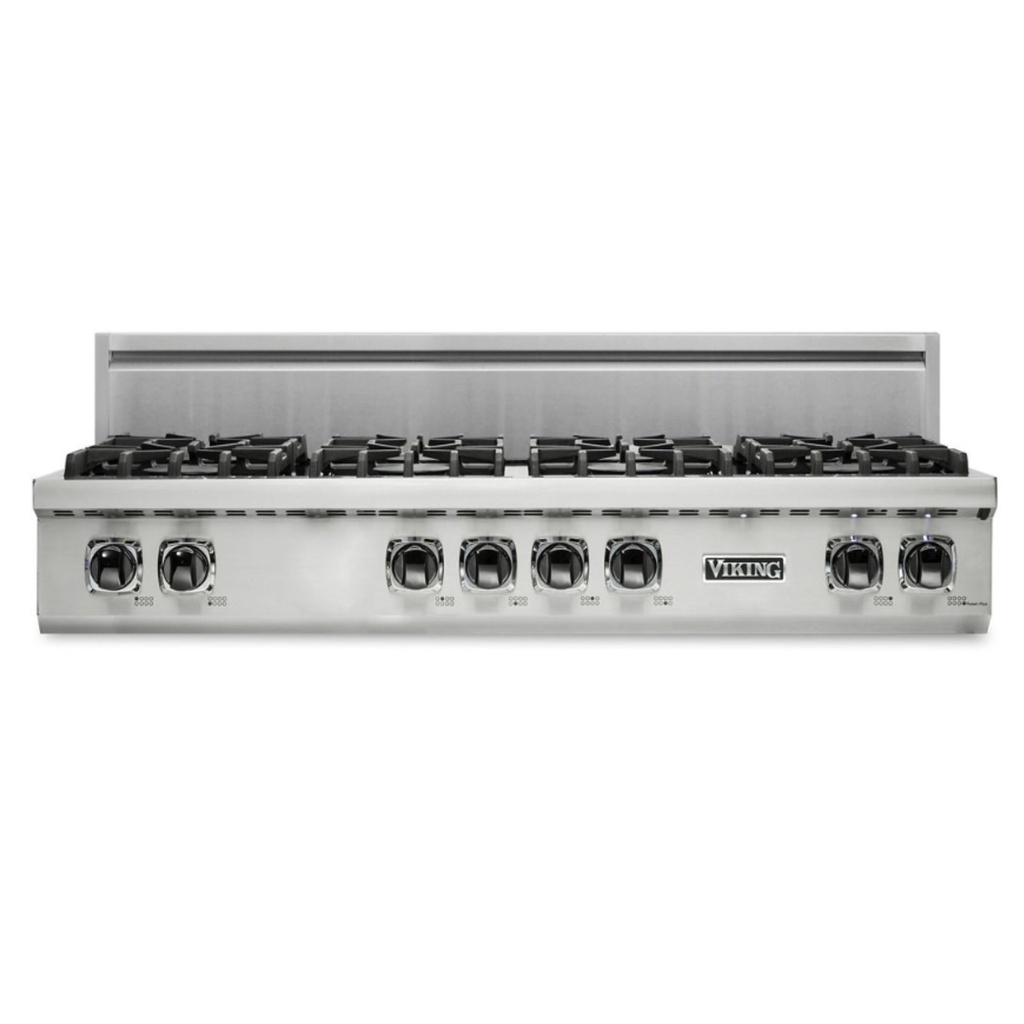

Viking VRT5488BSS 5 Series 48 inch Gas Rangetop with 8 Sealed Burners
The Viking 5 Series Gas Rangetop offers commercial power and styling to your kitchen. The TruPower Plus 18,500 BTU Burner provides professional power. The VSH Pro sealed burner system offers outputs from a delicate VariSimmer setting to the intense 15,000 BTUs.
TruPower Plus 18,500 BTU Burner
The TruPower Plus front burner on select Custom Series rangetops lets you cook like a pro with 18,500 BTUs of professional power.
VSH Pro Sealed Burner System
Cook like a pro with up to 18,500 BTUs and infinite settings of easy-to-clean high performance sealed burners. Combination of unique patented burner and surface design provides cleanability plus superior performance at any temperature setting.
VariSimmer Setting
The VariSimmer Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
Porcelainized Cooking Surface
Keep spills in one place with the raised edges of our exclusive one-piece tooled porcelainized cooking surface. Raised edges around perimeter seal top to completely contain spills. Porcelanized for easy cleaning, durability and long lasting finish.
SureSpark Ignition System
The exclusive SureSpark Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
COMMERCIAL-TYPE COOKING POWER
- EXCLUSIVE - VariSimmer-to-High Pro Sealed Burner System
- Front right burner equipped with TruPower Plus 18,500 BTU burner on select models
- Burners equipped with 15,000 BTUs
- EXCLUSIVE - VariSimmer Setting for all burners
- EXCLUSIVE - All burners equipped with SureSpark Ignition System for consistent and reliable ignition
- Automatic re-ignition; surface burners light at any position on the knob and re-light if extinguished, even on lowest setting
- Heavy-duty BlackChrome knobs and square bezels shipped standard
- SoftLit LED lights accent the control panel and illunimate knobs
- Island trim ships standard with each rangetop and already attached
EASY OPERATION AND CLEANUP
- EXCLUSIVE - One-piece tooled and porcelainized cooking surface for easy cleanup
- Burner caps are easily removable for quick cleaning
- Heavy-duty, porcelainized, cast-iron removable surface grates provide continuous front-to-rear, left-to-right surface for easy movement of large pots
GRIDDLE/SIMMER PLATE - 12”WIDE (on select models)
- Available in 12” width
- Commercial-grade, machined steel construction with blanchard finish to retain cooking oils for stick-resistant cooking
- Thermostatically controlled for precise temperatures
- Cast grease trough can be easily removed from the front of the griddle for cleaning
WARRANTY
- 2-year full - complete product
- 90-day full - cosmetic parts such as glass, painted items and decorative items
- 5-year limited - gas burners
Specifications
| Brands | |
|---|---|
| Brand | Viking |
| Series | 5 |
| Appearance | |
|---|---|
| Color | Stainless Steel |

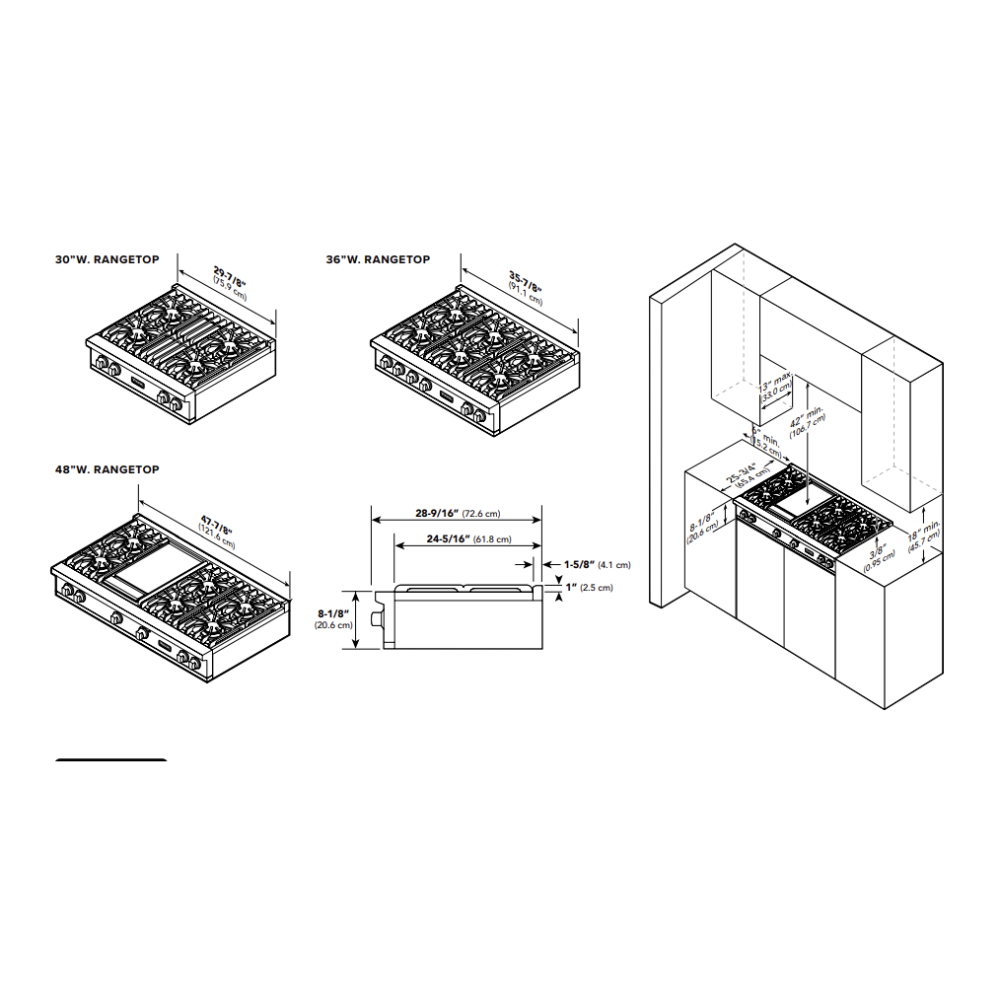

| Dimensions | |
|---|---|
| Exterior Width | 48" |
| Width | 47 7/8" |
| Depth | 28 9/16" |
| Height | 9 1/4" |
| Cutout Width | 48" |
| Cutout Depth | 24" |
| Cutout Height | 7 3/4" |
| Fuel Type | |
|---|---|
| Gas Type | Natural Gas or Liquid Propane |
| Fuel Type | Gas |
| Style | |
|---|---|
| Type | Rangetop |
| Control Location | Front |
| Pro-Style | Yes |
| Cooking Surface | |
|---|---|
| Number of Burners/Elements | 8 |
| Burner/Element Type | Sealed Burner |
| Burner/Element Output N1 | 18500 BTU |
| Burner/Element Output N2 | 15000 BTU |
| Burner/Element Output N3 | 15000 BTU |
| Burner/Element Output N4 | 15000 BTU |
| Burner/Element Output N5 | 15000 BTU |
| Burner/Element Output N6 | 15000 BTU |
| Burner/Element Output N7 | 15000 BTU |
| Burner/Element Output N8 | 15000 BTU |
| Highest Burner Output | 18500 BTU |
| Grill | No |
| Griddle | No |
| French Top | No |
| Technical Details | |
|---|---|
| Voltage | 120 |
| Amps | .5 |
| Features | |
|---|---|
| Continuous Grates | Yes |
| Control Type | Knobs |
